CT120 EX INFINITY ARGB Sync PC Cooling Fan (3-Fan Pack)
CT EX INFINITY ARGB Sync PC Cooling Fan

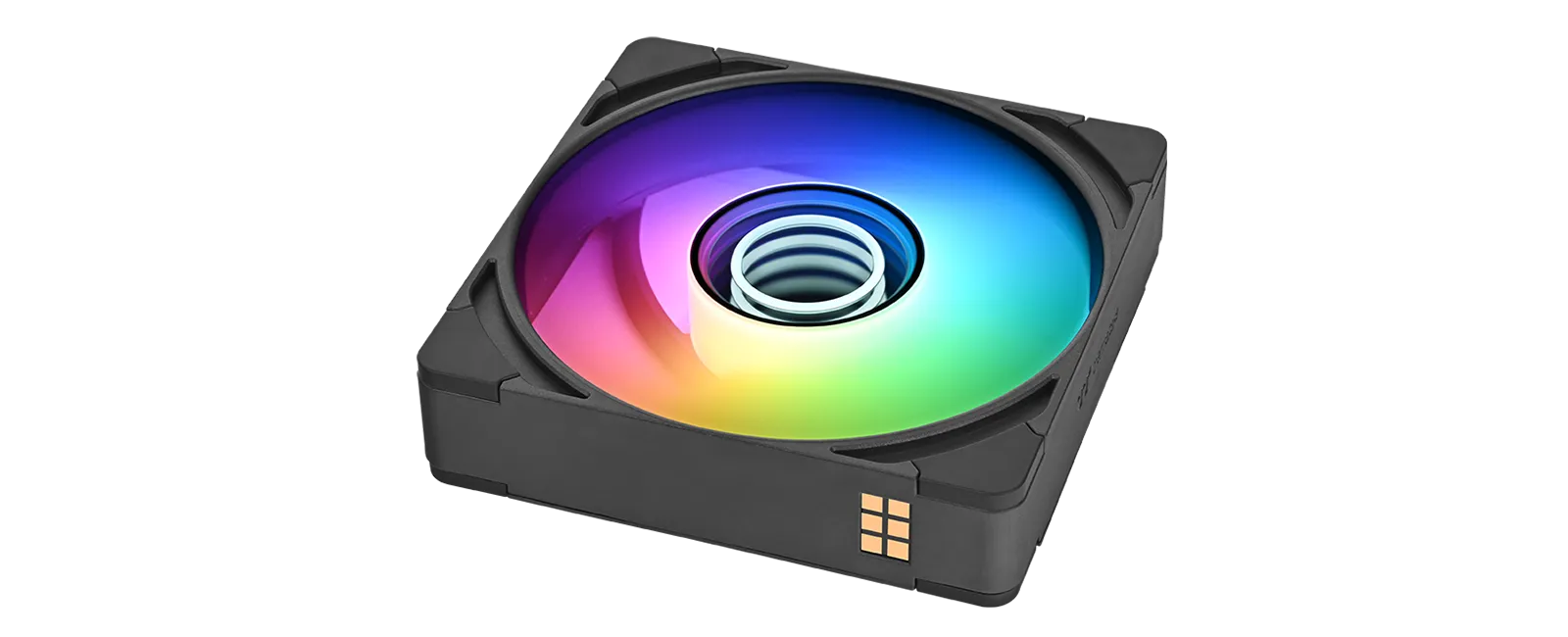

Beyond Ordinary: Dual Infinity Mirror Lighting
The CT EX INFINITY showcases innovative Dual Infinity Mirror Lighting on the fan hub. Reimagining the infinity mirror, this design combines a fixed white inner ring with a fully customizable ARGB outer ring, delivering richer layers in a single view. Let your build shine with a stylish white core and ARGB lighting in your favorite colors, drawing attention from every angle.
Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Say Goodbye to Excessive Cables
Connect your fans with CT EX INFINITY’s MagForce 2.0 Quick Connect Design and be free from messy cables!
Remarkably Improved Performance
After extensive research and testing, the CT120 EX INFINITY can generate 68.20 CFM of airflow and 3.05 mm-H2O static pressure while maintaining a 28 dB-A noise level, pushing ARGB fans to their limits.
28 mm Thickness for Enhanced Cooling
Compared to conventional 25 mm frames, the CT EX INFINITY features a 28 mm-thick fan body that improves airflow and static pressure.
Hidden Screw Design for a Sleek Appearance
Keep your build clean with the Hidden Screw Design. Cleverly hiding the mounting screws with specially designed rubber pads, it creates a smooth surface that enables your ARGB lighting take the spotlight.
Spectacular Lighting Effects
Light up your system with stunning lighting effects through 5V motherboard sync software, providing great coverage of 16.8 million colors. The CT EX INFINITY supports ASUS, MSI, GIGABYTE, BIOSTAR, and ASROCK sync software. Immerse your build in vibrant illumination.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CL-F241-PL12SW-A |
|---|---|
| 寸法 |
124 x 120 x 28 mm |
| インターフェース |
2510-4 Pin 5V ARGB header-3Pin |
| ファン始動電圧 |
6 V |
| 定格電圧 |
12 V &5V |
| 定格電流 |
12V: 0.21A / 5V: 0.24A (one fan) |
| 入力電源 |
12V: 2.52 W / 5V: 1.2 W (one fan) |
| ファンスピード |
PWM 500 ~ 2000 R.P.M |
| Air Pressure |
3.05 mm-H2O (one fan) |
| Air Flow |
68.20 CFM (one fan) |
| ノイズレベル |
28 dB-A (one fan) |
| ベアリングタイプ |
Hydraulic Bearing |
| 製品寿命 |
40,000 hrs, 25℃ |
| 同梱物 |
Fan x 3, Cable x3 |
User Manual
- ファイル名
- 概要
- サイズ
- Version
- Release Date
-
CT120 EX INFINITY ARGB Sync PC Cooling Fan Manual
- user manual
- 2026-02-09
