  • S380 TG ARGB Snow Mid Tower Chassis
S380 TG ARGB Snow Mid Tower Chassis S380 TG ARGB Snow Mid Tower Chassis S380 TG ARGB Snow Mid Tower Chassis S380 TG ARGB Snow Mid Tower Chassis S380 TG ARGB Snow Mid Tower Chassis S380 TG ARGB Snow Mid Tower Chassis
S380 TG ARGB Snow Mid Tower Chassis

S380 TG ARGB Snow Mid Tower Chassis

在庫切れ
P/N
CA-11K-00M6WN-00
USD$999,999.00
この商品が入荷しているときに通知する
S380 TG ARGB Snow Mid Tower Chassis is an ATX case that comes with a SF360 ARGB PWM Reverse Fan on the PSU Cover and a SF120 ARGB PWM fan at rear pre-installed.

  • The image is for reference only.
    •

  • The image is for reference only.
    •

  •

  • The image is for reference only.
    •
  • The image is for reference only.
    •

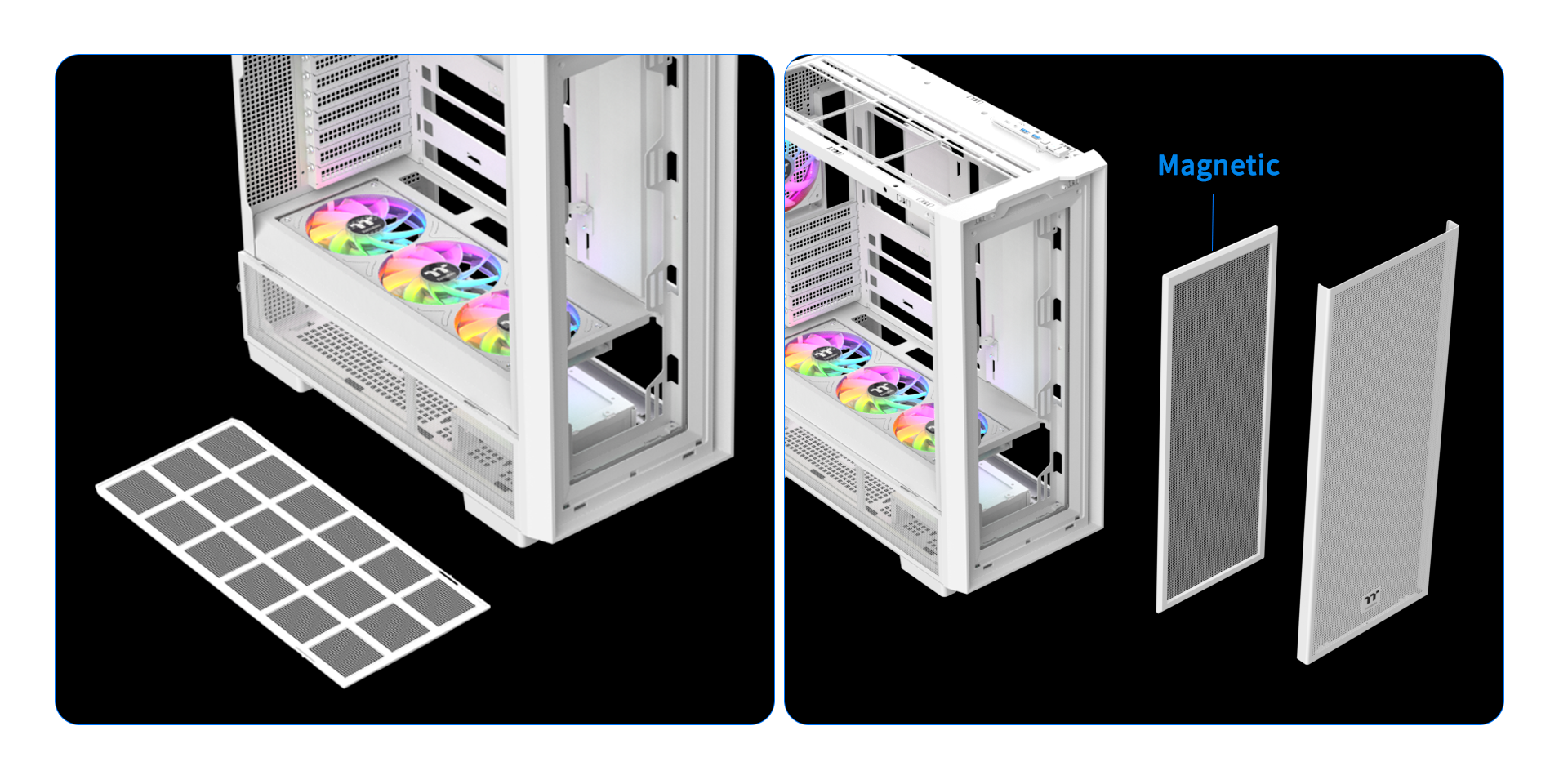

Good Dust Protection
Removable front and bottom dust filters to keep the system dust-free.
  • The image is for reference only.
    •

  •

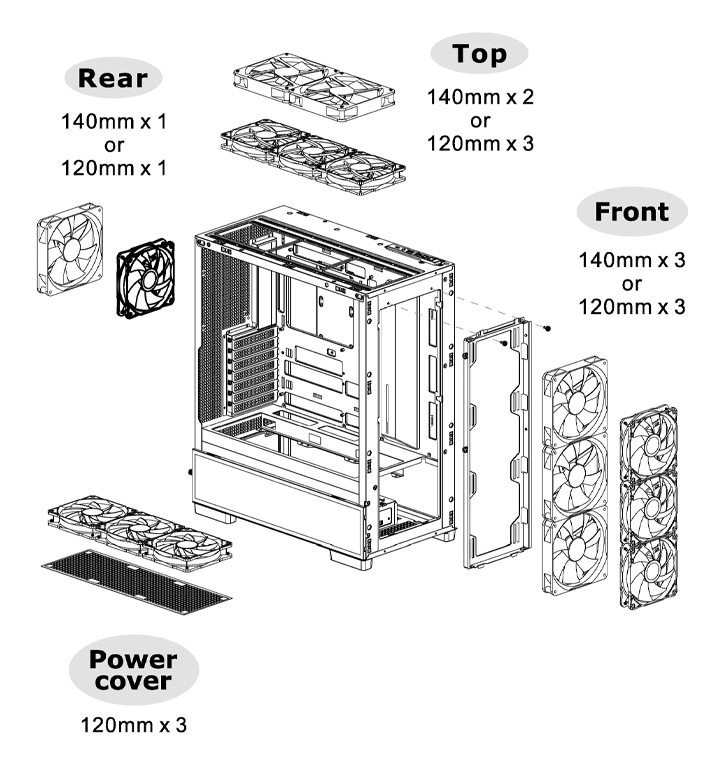

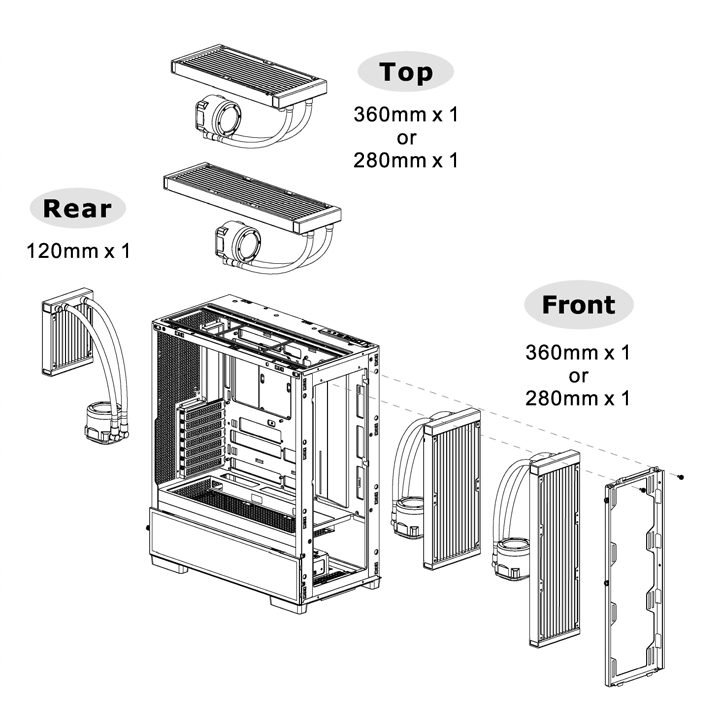

Opportunities For High-End Expansion
The S380 TG ARGB Snow Mid Tower Chassis offers excellent expandability. It supports a CPU cooler up to 180mm, GPUs up to 400mm, and power supplies up to 200mm. Optimized for cooling, it comes with SF360 ARGB PWM Reverse Fan on PSU Cover and a SF120 ARGB PWM fan at rear pre-installed, and can fit up to ten 120mm or six 140mm fans. Radiator support up to 360mm at the top or front, and 120mm at the rear, giving flexible options for high-end builds.
  • 120mm
  • 140mm
  • 120mm
  • 140mm
  • 240mm
  • 280mm
  • 360mm

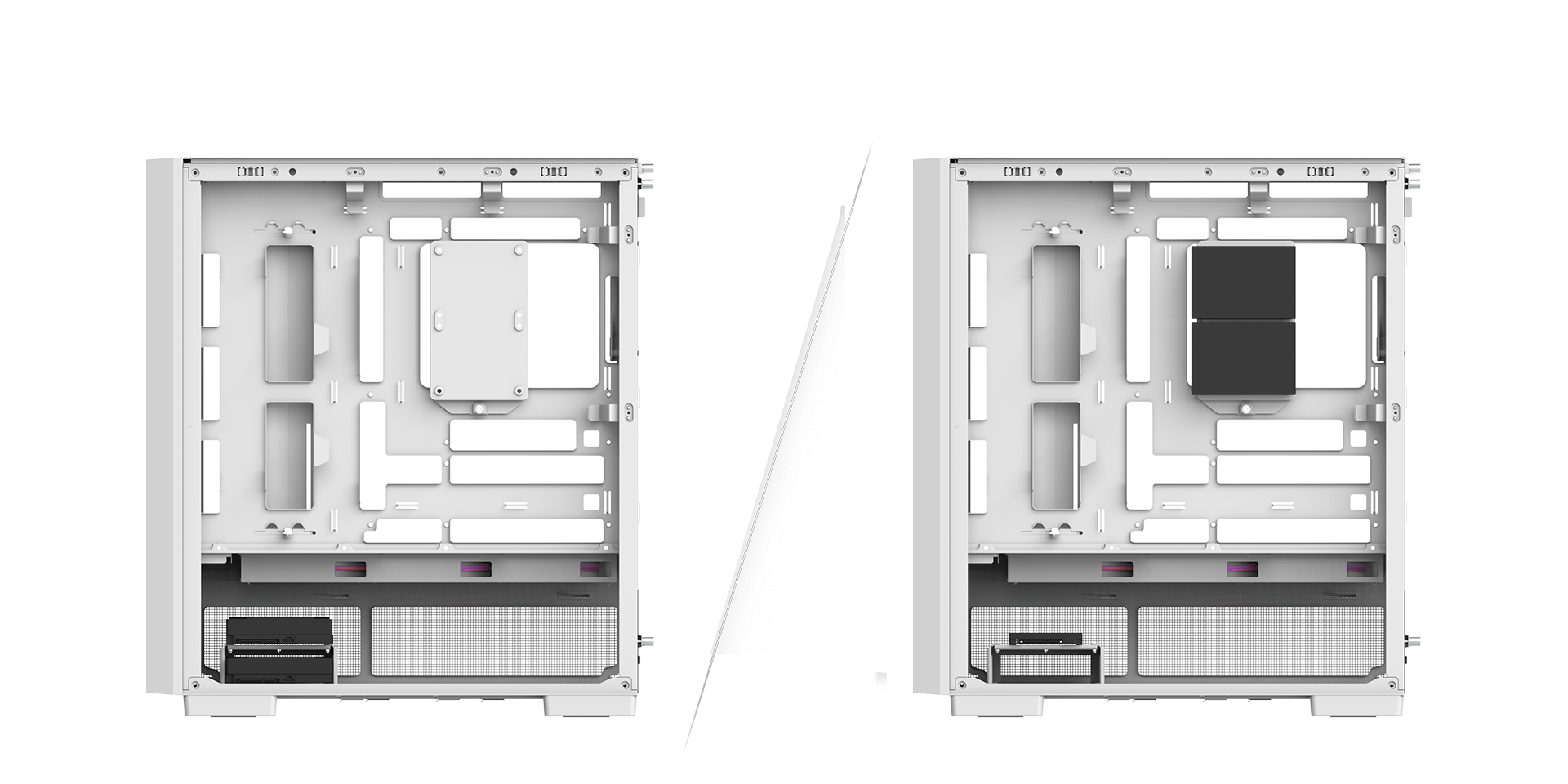

Storage Support
For storage compatibility, the chassis supports up to two 3.5” HDDs or three 2.5” SSDs for flexible installation options.
  • The image is for reference only.
    •
  • The image is for reference only.
    •





Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
その他の情報
P/N CA-11K-00M6WN-00
シリーズ S Series
ケースタイプ Mid Tower
外形寸法(高さ * 幅 * 奥行き) 536 x 238 x 485mm
(21.1x 9.37 x 19.1inch)
サイドパネル 4mm Tempered Glass x 1
カラー Snow
素材 SPCC
付属ファン Power Cover (intake):
360 x 120 x 25 mm SF360 ARGB PWM Reverse Fan
(500~1800rpm, 36.7 dBA) x 1

Rear(exhaust):
120 x 120 x 25 mm SF120 ARGB PWM Fan
(500~1800rpm, 31.2 dBA) x 1
ドライブベイ 2 x 3.5”+2 x 2.5” or 1 x 3.5” + 3 x 2.5”
拡張スロット 7
対応マザーボード 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
Hidden-Connector Motherboard 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
前面I/Oポート USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
対応電源 Standard PS2 PSU (optional)
搭載可能ファン Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140 mm, 2 x 140mm, 1 x 140mm

Rear:
1 x 120mm
1 x 140mm

Power Cover:
3 x 120mm, 2 x 120mm, 1 x 120mm
搭載可能ラジエーター Top Side(AIO) :
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Front Side(AIO) :
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Rear Side(AIO):
1 x 120mm
搭載可能サイズ CPU cooler height limitation: 180mm
VGA length limitation: 400mm
PSU length limitation: 200mm
