  • Vision 330 CR ARGB Mid Tower Chassis
Vision 330 CR ARGB Mid Tower Chassis Vision 330 CR ARGB Mid Tower Chassis Vision 330 CR ARGB Mid Tower Chassis Vision 330 CR ARGB Mid Tower Chassis Vision 330 CR ARGB Mid Tower Chassis Vision 330 CR ARGB Mid Tower Chassis
Vision 330 CR ARGB Mid Tower Chassis

Vision 330 CR ARGB Mid Tower Chassis

在庫切れ
P/N
CA-11V-00M1WN-00
USD$999,999.00
この商品が入荷しているときに通知する
Built for amazing views, the Vision 330 CR ARGB Mid Tower Chassis is an ATX case with a curved tempered glass front and left panel, and comes with five 120mm Infinity ARGB Reverse PWM Fans on the MB side and bottom, along with one 120mm Infinity ARGB PWM Fan at rear.
Motherboard
Mini ITX/Micro
ATX/ATX
SIDE PANELS
4mm Curved TG x 1
Fan Support
Up to nine
120mm fans
AIO Support
360/280/240/140/120mm
PC Case
Dimensions (mm)
388 x 295 x 479.4
Clearance (mm)
CPU Cooler: 175
GPU: 420
Power Supply: up to 250
I/O Ports
1 × USB Type-C
2 × USB 3.0
1 × HD-Audio
Storage
2 x 3.5” HDD
2 x 2.5” SSD
The image is for reference only.

  • The image is for reference only.
    •

  • The image is for reference only.
    •

  •

  • The image is for reference only.
    •

  •
Good Dust Protection
Removable dust filters help keep your system clean while maintaining optimal airflow.

  • The image is for reference only.
    •

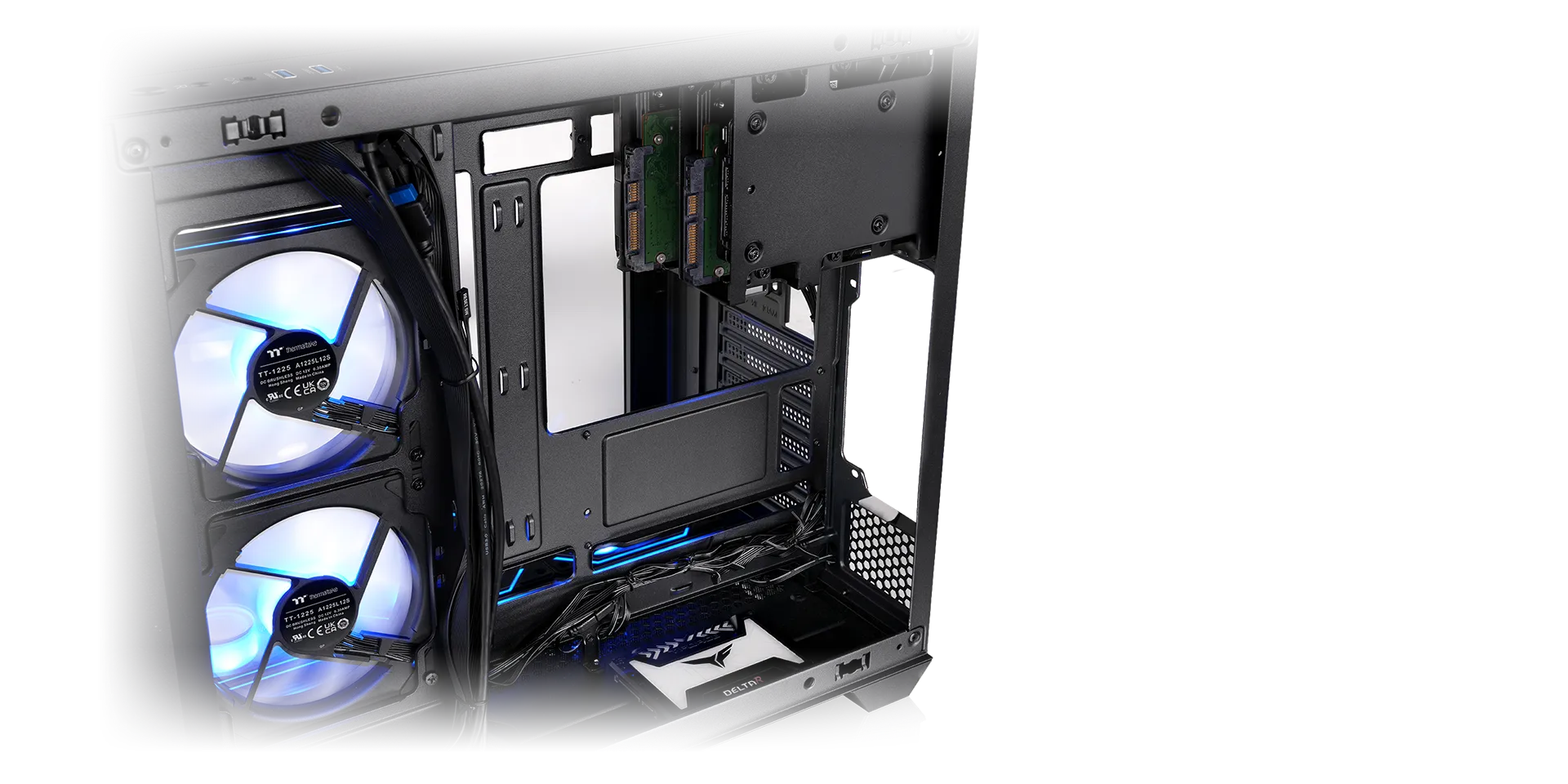

Storage Support
For storage compatibility, the chassis supports up to two 3.5″ HDDs and two 2.5″ SSDs for flexible installation options.
Drive Cage

2 x 3.5″ HDDs
and
1 x 2.5″ SSD
Drive Mounting Area

1 x 2.5″ SSD
  • The image is for reference only.
    •
Power Button
Reset Button
HD Audio
2 x USB 3.0
Type-A
USB 3.2 Gen 2
Type-C
Handy I/O Ports
  • Power Button (Blue LED)
  • Reset Button
  • HD Audio
  • 2 x USB 3.0 Type-A
  • 1 x USB 3.2 Gen 2 Type-C




Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
その他の情報
P/N CA-11V-00M1WN-00
ケースタイプ Mid Tower
外形寸法(高さ * 幅 * 奥行き) 388 x 295 x 479.4 mm
(15.28 x 11.61 x 18.87 inch)
サイドパネル 4mm Curved Tempered Glass x 1
素材 SPCC
付属ファン Right(intake):
120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 2
Bottom(intake):
120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 3
Rear(exhaust):
120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 1
ドライブベイ 2 x 3.5”, 2 x 2.5”
拡張スロット 6
対応マザーボード 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
Hidden-Connector Motherboard 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
前面I/Oポート USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
対応電源 Standard PS2 PSU (optional)
搭載可能ファン Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Right (M/B Side):
2 x 120mm, 1 x 120mm

Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Rear:
1 x 120mm
1 x 140mm
搭載可能ラジエーター Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right (M/B Side):
1 x 240mm, 1 x 120mm
搭載可能サイズ CPU cooler max height: 175mm
VGA max length: 420mm
PSU max length: 250mm
